20FT Apple Cabin Full Electric Package

Category： Solar-Powered House
Overall Length:5,800 mm (5.8 m)
Overall Width:2,200 mm (2.2 m)
Overall Height:2,450 mm (2.45 m)
Interior Floor Area:11.6 m²
INQUIRY EMAIL

20FT Apple Cabin Full Electric Package

1. Product Introduction

The 20FT Apple Cabin Full Electric Package is the zero-emission, solar-powered variant of the Apple Cabin series — a fully self-sufficient prefab cabin that generates 100% of its own electricity from rooftop solar panels and stores it in an integrated battery system. Every appliance is electric: induction cooktop, heat-pump AC, electric water heater, LED lighting, and smart home system. No gas connection, no generator, no emissions. Deploy it where the grid doesn't reach — and live in complete comfort, powered by the sun.

2. Main Technical Parameters

Parameter	Specification
External Dimensions	L 5.8m × W 2.2m × H 2.45m
Internal Dimensions	L 5.6m × W 2.0m × H 2.25m
Unit Weight	Approx. 2.8 tons per unit
Internal Floor Area	11.2 m²
Container Loading	2 units per 40ft HQ container
Layout	1 bedroom, 1 kitchen, 1 bathroom
Interior Wall Material	Thermal insulation XPS board + formaldehyde-free OSB board + wood veneer panel
Exterior Wall Material	Metal carved panel + partial wood grille decoration
Glass Material	5+12+5 hollow tempered glass
Ceiling Decoration	Wood veneer + recessed downlight design
Flooring Material	Wood-grain SPC stone plastic flooring
Built-in Furniture	Tatami storage bed, bedside table
Kitchen / Cabinetry	Quartz countertop, solid wood painted cabinets, wall cabinets + built-in induction cooker
Bathroom	Glass door, integrated vanity cabinet, mirror cabinet, toilet, wet-dry separation partition, shower head, water heater, UV moisture-proof board
Door	Broken bridge aluminum sliding door
Windows	2 side windows with sound insulation and thermal insulation broken bridge aluminum

3. Key Features

10kWh Lithium Battery Bank

LiFePO4 battery (6,000+ cycles) stores 2–3 days of cabin power. Runs the cabin through cloudy/rainy periods without grid backup. Safe, non-toxic, 10-year lifespan.

3kW Rooftop Solar System

6× 500W monocrystalline panels mounted on reinforced roof rails. Generates 12–15 kWh/day (sunny conditions). Enough for daily cabin operation + battery top-up.

100% All-Electric Appliances

Induction cooktop (no gas), heat-pump AC (electric heating+cooling), electric water heater, LED lighting. Zero combustion, zero emissions, zero gas connection.

20FT Container + Off-Grid Ready

Fits a standard 20ft container. Solar panels ship mounted on roof (folded) — unfold and connect on-site. No grid connection required. Deploy anywhere the sun shines.

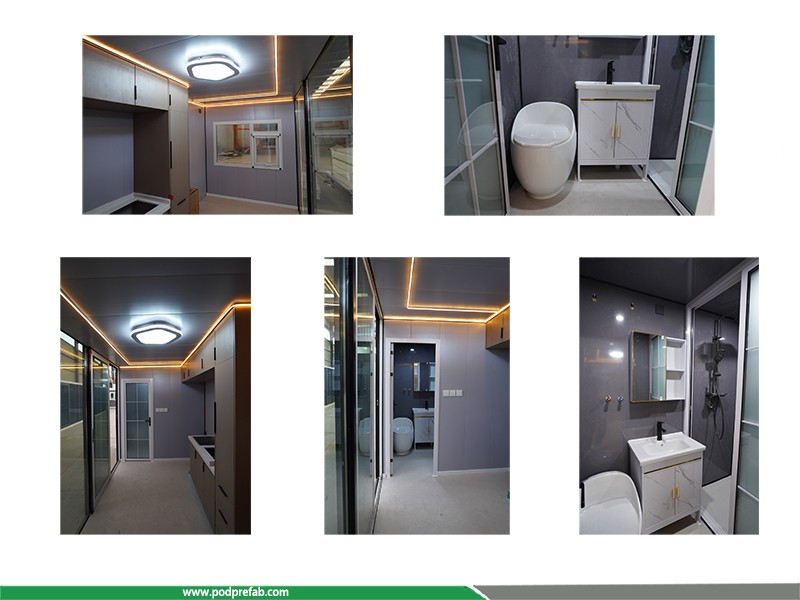

4. Interior Layout

The 14.5 m² interior is optimized for low-energy living: Sleeping/Living Zone (~8 m²), Bathroom (~3 m²), and Kitchenette (~3.5 m²). The roof carries the solar array; the battery and inverter are housed in an exterior compartment.

5. Application Scenarios

Eco-Resort: Zero-emission suites for sustainable tourism

Remote Research Station: Off-grid power for wilderness field stations

Nature Reserve: Silent, emission-free accommodation in protected areas

Desert Camp: Solar-powered cabins for desert tourism sites

Off-Grid Home: Self-sufficient living beyond the power grid

Green Demonstration: Zero-carbon showcase for sustainability education

6. Why Choose the Apple Cabin Full Electric Package?

True Zero Emissions: 100% solar-powered, all-electric appliances. No gas, no generator, no combustion. The only Apple Cabin variant with a genuine zero-carbon footprint.
Complete Off-Grid Independence: 3kW solar + 10kWh battery = 2–3 days autonomy without sun. Deploy where no grid exists — no utility bills, no power outages.
Silent Operation: No generator noise. Solar panels and battery operate in complete silence. Perfect for nature reserves and quiet wilderness settings.
20FT Container Shipping: Solar panels fold flat for shipping. One complete unit fits a standard 20ft container — lowest global freight for a solar cabin.

7. FAQ

Q: What happens on cloudy/rainy days?

The 10kWh battery stores 2–3 days of normal usage power. Solar panels still generate 20–40% of rated output on cloudy days. For extended bad weather (4+ days), the system enters eco mode (reduces AC and water heater load) and can optionally accept grid/generator backup via the AC input port.

Q: Can I upgrade the solar or battery later?

Yes. The roof rails support up to 6kW of panels (from standard 3kW). The battery compartment accommodates up to 20kWh (from standard 10kWh). The MPPT controller and inverter are oversized to handle upgrades. Contact us for retrofit kits.

Q: What is the MOQ and delivery time?

MOQ: 1 unit (standard). Eco-resort OEM/ODM: 5 units. Production: 25–30 working days (longer due to solar integration). Global shipping via 20ft container. Volume discounts for 10+ units.

Get a personalized quote for the 20FT Apple Cabin Full Electric Package
