20ft Double-Wing Folding Expandable Container House: One Container, Double Space
20ft Double-Wing Folding Expandable Container House: One Container, Double Space
We specialize in efficient, reliable and movable space solutions. Our 20ft double-wing folding expandable container house is our flagship product. It perfectly combines the standard convenience of containers with the practical comfort of architectural space, designed for project camps, emergency resettlement, commercial expansion and various temporary or semi-permanent space applications.
1. Folding Design, Instant Space Transformation
The essence of this product lies in its innovative double-wing expansion structure. During transportation and storage, it remains a standard 20ft container for efficient logistics and stacking. On-site, both wings can be unfolded simultaneously, nearly doubling the usable area to form a spacious and practical integrated space. This “folded as a container, expanded as a room” design fundamentally solves the problems of high transportation costs and low utilization of traditional fixed spaces.
2. Industrial-Grade Construction, Safe and Durable
Each module is manufactured under industrial-quality control standards to ensure reliability and durability in all environments.
Main frame: High-strength galvanized steel for the main load-bearing structure, providing excellent stability, wind resistance and seismic performance.
Envelope system: Composite sandwich panels for walls and roof, filled with high-quality thermal insulation materials for effective heat and sound insulation, resisting harsh climates.
Surface treatment: Overall anti-corrosion treatment and eco-friendly coating to extend service life and adapt to complex outdoor environments.
3. Wide Application Scenarios

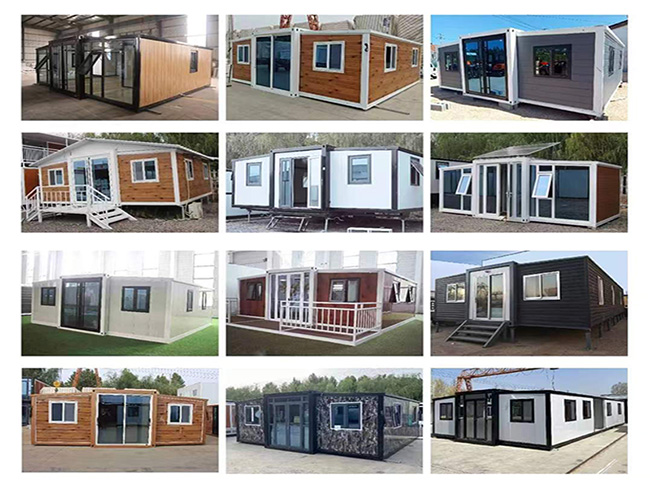

Frontline Project Camps: Rapidly built as on-site command centers, offices, staff dormitories or material warehouses;
Emergency Resettlement: Quickly deployed as safe shelters, medical stations or command centers during disaster relief and public health incidents;
Commercial & Public Services: Used as mobile shops, exhibition halls, scenic service stations, temporary classrooms or testing stations;
Remote Area Facilities: Provides ready-to-use work and living bases for exploration, scientific research and rural construction.
4. Flexible Adaptation, Customizable on Demand
|
Item |
Specification |
|
Main Frame & Double-Wing Structure |
1. Top / side beams: 80×100×2.5mm galvanized square tube 2. Top end beams: 2.5mm galvanized bent parts 3. Top longitudinal secondary beams: 30×30×1.3mm galvanized square tube 4. Top transverse secondary beams: 40×60×1.5mm galvanized square tube 5. Bottom side beams: 80×100×2.5mm galvanized square tube 6. Bottom end beams: 2.5mm galvanized bent parts 7. Bottom longitudinal secondary beams: 40×80×1.5mm galvanized square tube 8. Bottom transverse secondary beams: 40×80×1.5mm galvanized square tube 9. 5mm galvanized lifting lugs: 210×150×160mm 10. Steel columns: 2.5mm galvanized bent parts |
|
Wing Frame |
1. Top frame: P40×80×1.5mm P-shaped tube 2. Side tubes: 40×80×1.5mm galvanized square tube 3. Bottom frame: 60×80×2.0mm galvanized square tube 4. Folding hinges: 130mm galvanized hinges |
|
Frame Coating |
Electrostatic powder coating + anti-corrosion layer |
|
Roof Structure |
1. External roof: Type 950, 50mm thick, double-sided 0.3mm galvanized sheet + corrugated sheet + 0.45mm 2. Double-wing top: Type 950, 50mm thick, double-sided 0.3mm galvanized composite panel + corrugated sheet + 0.45mm 3. Internal ceiling: Type 950, 50mm thick, double-sided 0.3mm galvanized sheet |
|
Wall Panels |
1. Side, front & rear walls: Type 950, 50mm thick, double-sided 0.3mm galvanized sheet 2. Internal partition walls: Type 950, 50mm thick, double-sided 0.3mm galvanized sheet |
|
Flooring |
1. Main frame floor: 18mm fire-resistant cement fiber board 2. Double-wing floor: 18mm bamboo plywood 3. Finishing layer: 1.6mm PVC flooring |
|
Doors & Windows |
1. Aluminum alloy windows: 800×900mm × 6 sets 2. Aluminum alloy double doors: 840×2035mm × 1 set |
|
Electrical System |
1. Circuit breaker: 32A leakage protector, 220V/50Hz 2. Lighting: 30×30 panel lights, ceiling lamps 3. Sockets: International standard 3-pin & 5-pin (customizable) 4. Switches: Double / single key (customizable) 5. Wiring: Main cable 6mm², air-con socket 4mm², general socket 2.5mm², lighting wire 1.5mm² (standard wires, customizable) |
|
Accessories |
Including corner trims, skirting boards, corner guards, waterproof tape, structural adhesive |
