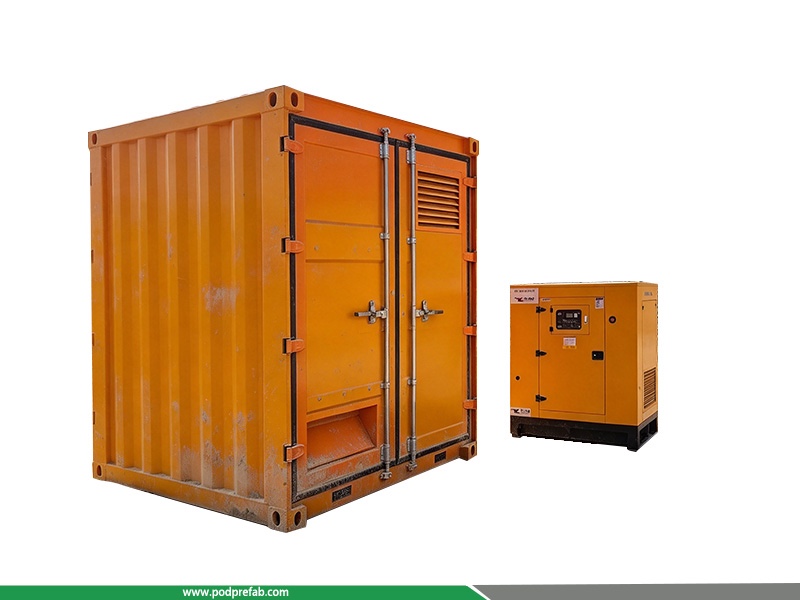

Integrated Container Power Station Combined with Diesel Genset and Battery Energy Storage

Category： Containerized Hybrid Diesel BESS Power Station
Model：GPFCN‑200/250A400
Battery Energy Storage Capacity：250kW / 153.6kWh
Diesel Generator Rated Power：200kW
Total Hybrid Output Capacity：450kW / 153.6kWh
INQUIRY EMAIL

Integrated Container Power Station Combined with Diesel Genset and Battery Energy Storage

1.Product Overview

Traditional off-grid power solutions face obvious bottlenecks in large industrial scenarios: standalone diesel generators suffer from low load efficiency, excessive fuel consumption and weak impact resistance, while conventional small hybrid units cannot support high-power fluctuating loads, failing to meet the stable and long-term power demand of large off-grid projects. Differentiated from ordinary low-power hybrid equipment, our Integrated Container Power Station Combined with Diesel Genset and Battery Energy Storage (GPFCN‑200/250A400) adopts industrial heavy-duty hybrid configuration, matching a 200kW high-stability diesel genset with a 250kW/153.6kWh large-capacity BESS module. The combination achieves a breakthrough 450kW super peak hybrid output, delivering far stronger power redundancy and operational adaptability than mainstream integrated container power stations on the market.

Tailored exclusively for full off-grid independent operation, this integrated diesel battery power station requires no utility grid support and operates stably as a self-sufficient micro-grid system. Equipped with a self-developed off-grid dedicated EMS intelligent scheduling system, the equipment realizes autonomous power distribution, real-time voltage and frequency stabilization, and dynamic peak-valley regulation. The high-rate 250kW energy storage system undertakes all instantaneous load surges, equipment startup impacts and low-load standby power, enabling the 200kW diesel genset to consistently operate within the optimal high-efficiency power range. This intelligent collaborative operation cuts comprehensive fuel consumption by over 30%, while maintaining 450kW ultra-high peak power supply capacity, perfectly adapting to the high-power, fluctuating and long-cycle operating characteristics of large off-grid industrial sites.

Built with IP54 full outdoor waterproof and dustproof specification and integrated container modular design, the power station features tool-free rapid deployment, no on-site civil engineering or complicated assembly required. It supports 24/7 unattended stable operation in extreme environments including high temperature, heavy dust, humidity and remote wilderness. Effectively solving the core pain points of traditional off-grid power equipment — insufficient peak power, poor load resistance, high operating cost and unstable power quality — this integrated diesel genset battery storage power station is a high-efficiency, low-consumption and high-reliability dedicated power solution for large-scale off-grid industrial projects.

2. Product Structure & Composition

To adapt to 450kW high-power heavy-duty off-grid operating conditions, the power station adopts a scientific upper and lower double-cabin isolated layout, completely different from the mixed structure of ordinary hybrid power stations. The independent cabin design thoroughly isolates heat, vibration and noise generated by the diesel genset from precision energy storage and control components, avoiding operational interference and greatly improving the overall stability and service life of the equipment during long-term heavy-load operation. All core components are industrially customized and upgraded targeting 450kW ultra-high peak output, with superior power matching, environmental adaptability and durability compared with universal hybrid modules.

The detailed configuration and core functions are displayed below:

Cabin Module	Components
Energy Storage Cabin(Upper Cabin)	PCS (Power Conversion System)
	EMS Intelligent Control System
	High-voltage Cabinet
	High-capacity Battery Pack
Diesel Generator Cabin(Lower Cabin)	High-power Diesel Engine
	High-power Generator
	Intelligent Cooling System
	Intelligent Monitoring Fuel Tank
	Hybrid Parallel Controller

3. Technical Specifications

Item	Parameter
Model	GPFCN‑200/250A400
Battery Energy Storage Capacity	250kW / 153.6kWh
Diesel Generator Rated Power	200kW
Total Hybrid Output Capacity	450kW / 153.6kWh
Rated Output Voltage	400Vac
Rated Output Frequency	50Hz
Output Connection	3‑Phase 4‑Wire
Protection Class	IP54

4. Product Advantages of Integrated Container Power Station vs Traditional Diesel Generators

Comparison Item	Traditional Single Diesel Generator	Integrated Container Power Station Combined with Diesel Genset and Battery Energy Storage
Off-grid Power Supply Capacity	Only fixed single power output, no peak compensation capability. It cannot resist startup impact of large mechanical equipment, prone to voltage drop and power instability, and fails to support high-power industrial continuous operation.	450kW Industry-Leading Peak Power: Matches 200kW stable base load diesel genset with 250kW large-capacity BESS for full peak compensation. It possesses ultra-large power margin, easily copes with extreme fluctuating loads and frequent equipment startup impacts, and delivers far stronger off-grid power supply capacity than single diesel units.
Fuel Economy (Off-grid Operation)	Frequent start-stop and long-term low-load idling cause severe fuel waste. Coupled with high fuel transportation costs in remote areas, the overall long-term operating cost remains extremely high.	30%+ Stable Fuel Savings: Intelligent hybrid scheduling avoids low-efficiency operation of diesel gensets. The BESS independently undertakes peak loads and standby power, enabling the diesel unit to work in the optimal efficiency range all year round, greatly cutting fuel consumption and remote transportation costs.
Equipment Service Life	Long-term exposure to impact load, low-load operation and frequent switching leads to aggravated engine wear, high failure rate and shortened service life, requiring frequent maintenance and replacement.	Extended Service Life & Low Failure Rate: Significantly reduces diesel genset operating hours and invalid mechanical wear. Isolated cabin protection and intelligent load avoidance adapt to long-term unattended heavy-duty operation, lowering subsequent maintenance and replacement costs.
Off-grid Power Quality	Slow load response, obvious voltage and frequency deviation, serious harmonic interference. Unable to support precision industrial equipment, easily causing equipment failure and production losses.	Industrial-Grade Stable Power Output: 10ms ultra-fast dynamic response with active harmonic suppression. The BESS achieves precise power stabilization, ensuring constant voltage and frequency output and fully meeting the power supply standards of high-precision and large industrial equipment.
Functional Adaptability	Single power generation function only, no peak regulation and buffering capacity. Incompatible with new energy equipment, with single application scenarios and poor scalability.	Multi-Scenario Expandable Application: Supports independent off-grid power supply, wind/solar new energy complementary power generation and off-grid micro-grid construction. Flexible and expandable to meet diversified power demands of various large industrial projects.
Off-grid O&M Cost	Long-term continuous operation leads to frequent failures and maintenance, with high spare parts consumption and expensive manual maintenance costs in remote areas.	Ultra-Low Long-Term O&M Cost: Reduced diesel operating time lowers equipment failure rate. Intelligent unattended monitoring minimizes manual intervention, saving labor, spare parts and maintenance costs for long-term off-grid operation.

5. Application Scenarios

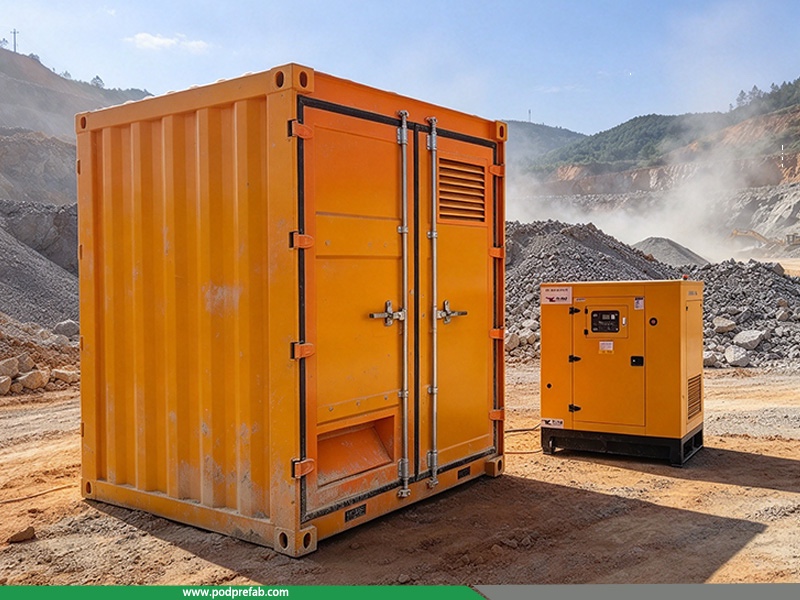

Large Off-grid Mining Sites: Customized for large remote mines, mineral processing bases and heavy mining equipment clusters without grid coverage. The 450kW ultra-high peak power perfectly adapts to frequent load fluctuations of mining equipment, solving power shortage and unstable power supply problems of traditional diesel units, and supporting 24-hour continuous industrial operation.
Large-Scale Remote Infrastructure Construction: Suitable for long-distance railways, highways, bridge projects and wilderness large-scale construction scenarios. It provides stable, energy-saving and high-power off-grid power guarantee for engineering machinery and temporary construction equipment groups.
Island & Coastal Off-grid Areas: Adopts salt-fog corrosion-resistant and moisture-proof container structure, adapting to harsh marine climates. It provides long-term self-sufficient and stable power support for island development, coastal engineering and offshore auxiliary facilities.
Remote Industrial Zones & Field Bases: Ideal for grid-free remote industrial parks, border defense bases and field operation stations, realizing long-term unattended, low-consumption and high-stability off-grid power supply.
Off-grid New Energy Micro-grid Projects: Matches off-grid photovoltaic and wind power systems to form wind-solar-diesel-storage complementary micro-grid. The 250kW large-capacity BESS effectively stabilizes new energy power fluctuations, improving overall power supply stability and energy utilization efficiency.
Field High-Power Emergency Power Supply: Features rapid container deployment and 450kW super peak output, providing reliable high-power emergency power support for field exploration, disaster rescue and sudden power shortage scenarios in remote areas.
