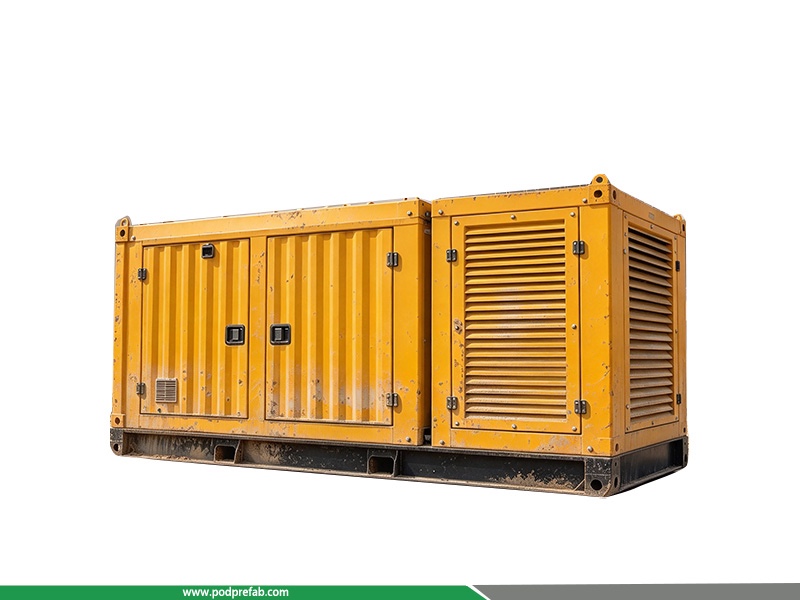

Hybrid Diesel Battery Storage Container Power Station for Off‑grid Project

Category： Containerized Hybrid Diesel BESS Power Station
Model:GPFCN‑300/250A400
BESS Power / Energy Capacity:250kW / 153.6kWh
Diesel Generator Rated Power:300KW
Total Hybrid Output Capacity:550kW / 153.6kWh
INQUIRY EMAIL

Hybrid Diesel Battery Storage Container Power Station for Off‑grid Project

1. Product Overview:

Traditional off-grid diesel generators suffer from high fuel consumption, poor peak load capacity and unstable power, while ordinary hybrid power stations cannot support heavy fluctuating industrial loads. Our Hybrid Diesel Battery Storage Container Power Station (GPFCN‑300/250A400) solves these pain points with an industrial hybrid configuration of 300kW diesel genset and 250kW/153.6kWh BESS, achieving a 550kW ultra-high peak hybrid output for stronger power redundancy and broader off-grid adaptability.

Built for fully independent off-grid micro-grid operation, this Hybrid Diesel Battery Off-grid Power Station requires no grid access. The dedicated off-grid EMS system enables intelligent power scheduling, automatic voltage/frequency stabilization and peak shaving. The battery system absorbs instantaneous load surges and equipment startup impacts, keeping the 300kW diesel genset running continuously at optimal efficiency. This intelligent collaboration cuts fuel consumption by 30%+ while maintaining 550kW high peak power, perfectly matching heavy-duty, high-fluctuation off-grid power demands.

Featuring IP54 dustproof and waterproof grade and an all-in-one container design, this Hybrid Diesel Battery Storage Container supports plug-and-play rapid deployment with no complicated on-site installation. It runs stably 24/7 unattended in high-temperature, dusty, humid and remote wilderness environments, serving as a high-efficiency, low-cost and reliable off-grid power solution for large industrial projects.

2. Product Structure & Composition

Tailored for 550kW high-power off-grid operation, the power station adopts an upper-lower double-cabin isolated structure. It effectively isolates diesel heat, vibration and noise from precision energy storage and control components, ensuring long-term stable operation. All core parts are industrial-grade calibrated for 550kW peak output, delivering superior durability and environmental adaptability.

Cabin Module	Components
Energy Storage Cabin(Upper Cabin)	PCS (Power Conversion System)
	EMS Intelligent Control System
	High-voltage Cabinet
	High-capacity Battery Pack
Diesel Generator Cabin(Lower Cabin)	High-power Diesel Engine
	High-power Generator
	Intelligent Cooling System
	Intelligent Monitoring Fuel Tank
	Hybrid Parallel Controller

3. Technical Specifications

Item	Parameter
Model	GPFCN‑300/250A400
BESS Power / Energy Capacity	250kW / 153.6kWh
Diesel Generator Rated Power	300kW
Total Hybrid Output Capacity	550kW / 153.6kWh
Rated Output Voltage	400Vac
Rated Output Frequency	50Hz
Output Connection	3‑Phase 4‑Wire
Protection Class	IP54

4. Advantages of hybrid diesel battery power station vs Traditional Diesel Generators

Comparison Item	Traditional Single Diesel Generator	Hybrid Diesel Battery Storage Container Power Station
Power Supply Capacity	Fixed single power output, no peak compensation. Poor impact resistance, prone to voltage drop and unstable power, unable for high-power fluctuating loads.	550kW Ultra-High Peak Power: 300kW diesel base load + 250kW BESS peak compensation. Large power margin easily copes with heavy equipment startup impacts and extreme load fluctuations.
Fuel Economy	Frequent start-stop and low-load idling cause severe fuel waste. High remote fuel transportation cost leads to high long-term operation expense.	30%+ Fuel Saving: BESS undertakes peak and standby loads, enabling diesel genset to run steadily in high-efficiency range, greatly cutting fuel and logistics costs.
Service Life	Frequent impact and low-load operation aggravate engine wear, leading to high failure rate and short service life.	Longer Service Life: Reduced diesel running time and mechanical wear. Isolated cabin structure and intelligent load avoidance lower failure and maintenance frequency.
Power Quality	Slow response, obvious voltage/frequency deviation and serious harmonics, failing precision equipment operation.	Industrial Stable Power: 10ms fast response with harmonic suppression. BESS ensures precise voltage and frequency stabilization for high-standard industrial power demand.
Scenario Adaptability	Only single diesel power generation, no peak regulation, incompatible with new energy and limited in application.	Multi-Scenario Expansion: Supports independent off-grid power supply, solar/wind-diesel-battery complementary micro-grid systems for diverse industrial projects.
O&M Cost	Frequent maintenance and high spare parts consumption, with expensive manual work in remote areas.	Ultra-Low O&M Cost: Intelligent unattended operation minimizes manual intervention. Lower diesel runtime reduces failure rate and long-term maintenance investment.

5. Application Scenarios

Off-grid Mining Sites: Provides stable 550kW peak power for remote mines and heavy mining equipment, adapting to frequent load fluctuations and supporting 24-hour continuous operation.
Remote Infrastructure Projects: Ideal for wilderness construction, highway, railway and bridge projects, delivering energy-saving and high-reliability off-grid power for engineering machinery groups.
Island & Coastal Areas: Corrosion-resistant container structure adapts marine environments, offering long-term self-sufficient power for island development and coastal engineering.
Remote Industrial & Field Bases: Suitable for grid-free industrial parks, field operation and border defense bases with low-consumption and unattended stable power supply.
New Energy Micro-grid Projects: Complements off-grid solar and wind power systems, stabilizing new energy fluctuations and improving overall power supply efficiency and stability.
Field Emergency Power Supply: Fast-deployment container design with 550kW high peak output for field exploration, disaster rescue and sudden power shortage emergencies.
