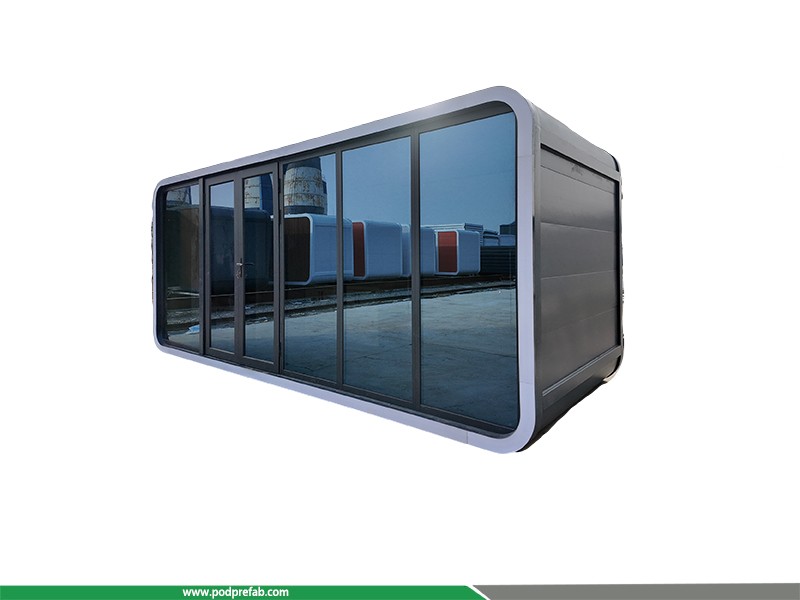

20FT Apple Cabin Shell Kit

Category： Apple Cabin
Overall Length:5,800 mm (5.8 m)
Overall Width:2,200 mm (2.2 m)
Overall Height:2,450 mm (2.45 m)
Total Weight:≈ 2,800 kg
INQUIRY EMAIL

20FT Apple Cabin Shell Kit

1. Product Overview

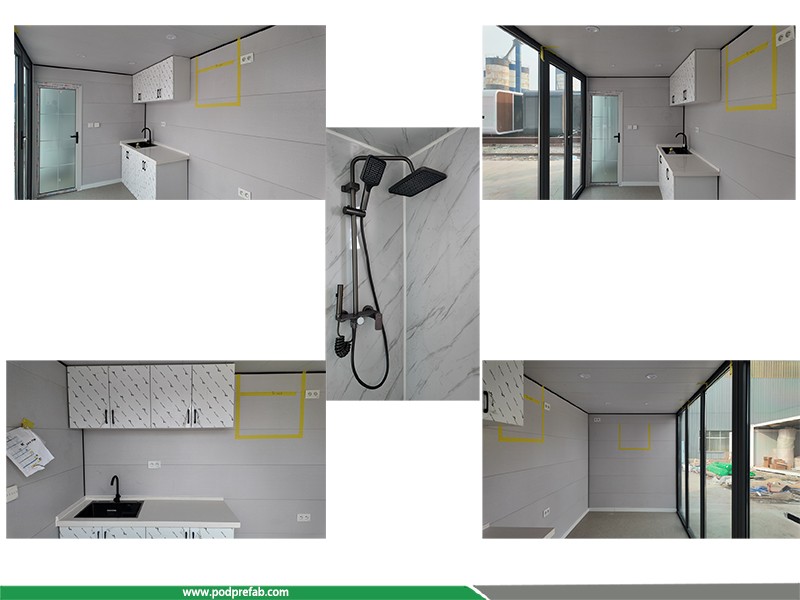

The 20FT Apple Cabin Shell Kit is the bare-structure foundation model of the Apple Cabin series — a weatherproof steel-frame shell delivered ready for your interior build-out. It includes the galvanized steel frame, FRP exterior wall panels with PU insulation, insulated waterproof roof, floor structure, and sealed windows/door openings. What it does not include: interior wall finish, ceiling, flooring, electrical, plumbing, fixtures, and furniture. You bring the vision — we deliver the shell.

2. Technical Parameters:

Parameter	Specification
External Dimensions	L 5.8m × W 2.2m × H 2.45m
Internal Dimensions	L 5.6m × W 2.0m × H 2.25m
Unit Weight	Approx. 2.8 tons per unit
Internal Floor Area	11.2 m²
Container Loading	2 units per 40ft HQ container
Layout	1 bedroom, 1 kitchen, 1 bathroom
Interior Wall Material	Thermal insulation XPS board + formaldehyde-free OSB board + wood veneer panel
Exterior Wall Material	Metal carved panel + partial wood grille decoration
Glass Material	5+12+5 hollow tempered glass
Ceiling Decoration	Wood veneer + recessed downlight design
Flooring Material	Wood-grain SPC stone plastic flooring
Built-in Furniture	Tatami storage bed, bedside table
Kitchen / Cabinetry	Quartz countertop, solid wood painted cabinets, wall cabinets + built-in induction cooker
Bathroom	Glass door, integrated vanity cabinet, mirror cabinet, toilet, wet-dry separation partition, shower head, water heater, UV moisture-proof board
Door	Broken bridge aluminum sliding door
Windows	2 side windows with sound insulation and thermal insulation broken bridge aluminum

3. Key Features

Complete Steel Structure

Full galvanized steel frame (Q355, 2.5mm) — welded, bolted, and anti-corrosion coated. Wind-rated to 120 km/h, seismic grade 8. Structural integrity guaranteed.

Weatherproof Envelope

FRP exterior walls with 75mm PU foam core + 100mm insulated roof. Sealed seams, IPX4 waterproof. Your interior build-out stays dry in any weather.

Windows & Door Pre-Installed

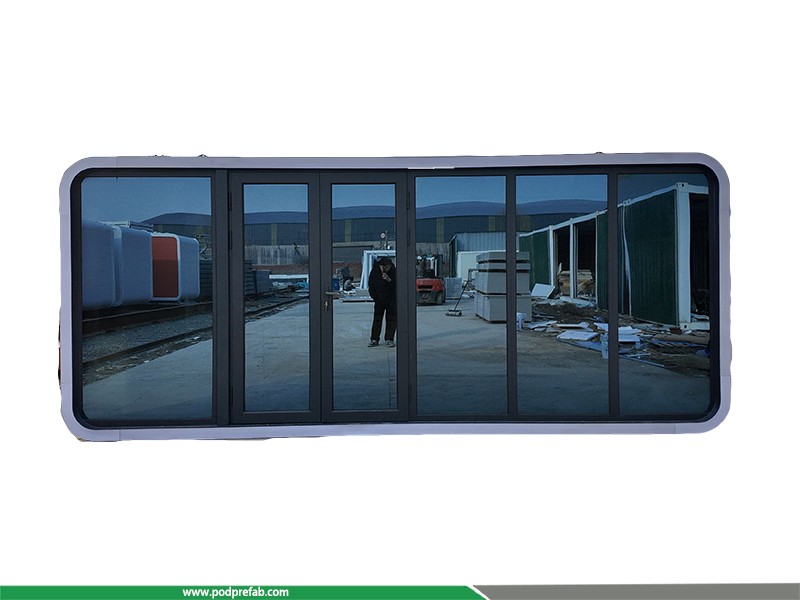

Double-glazed aluminum windows (5+12A+5mm) and entrance door are factory-installed and sealed. No glazing work needed on-site.

Pre-Drilled Utility Pass-Throughs

Electrical conduit sleeves and plumbing pass-throughs are pre-drilled through the floor and walls. Your electrician and plumber work faster — no structural drilling.

20FT Container Shipping

Fits a standard 20ft shipping container — lowest global freight. Flat-pack option available for 3+ units (saves even more on shipping). Ship anywhere a container goes.

4. Application Scenarios

DIY Custom Build:Homeowner builds their dream cabin interior
Builder / Contractor:Pro crew finishes interiors for clients
Multi-Unit Development:Developer deploys shells, finishes locally
Art / Hobby Studio:Custom workshop with your own layout
Code-Compliant Build:For regions requiring local electrical/plumbing
Flat-Pack Export:Distributors import and assemble locally

5. Why Choose the Apple Cabin Shell Kit?

Lowest Cost Entry: ~40% cheaper than the turnkey Apple Cabin. You pay for the structure — and control every dollar of the interior build-out.
Weatherproof & Ready: The shell arrives fully sealed and waterproof. You can start interior work immediately — no waiting for masonry or framing to dry.
Builder-Friendly: Pre-drilled utility pass-throughs, standard dimensions, and a familiar steel-frame platform mean your contractor works faster and cheaper.
20FT Container Compatible: Standard container size = lowest ocean freight worldwide. Ship to any port.
2-Year Structural Warranty: Frame, walls, roof, and waterproofing covered. Interior work warranted by your contractor.

6. FAQ

Q: What exactly do I get vs. the turnkey Apple Cabin?

The Shell Kit includes the steel frame, FRP insulated walls, insulated roof, floor structure, windows, and door — all factory-assembled and weatherproof. The turnkey Apple Cabin adds: interior wall finish, ceiling, SPC flooring, full electrical system (wiring, outlets, lights, breaker), plumbing (pipes, bathroom, kitchen), HVAC, smart lock, and furniture.

Q: Can I order the Shell Kit now and add interior later?

Absolutely. Many customers start with the Shell Kit to lock in the structure and shipping, then complete the interior over weeks or months as budget allows. We also offer optional interior kits (electrical, plumbing, full) that you can order later and install yourself or with a contractor.

Q: What is the MOQ and delivery time

MOQ: 1 unit (assembled) / 3 units (flat-pack). Production: 15 working days (faster than turnkey since no interior work). Global shipping via 20ft container. Volume discounts for 10+ units.
