20ft Expandable Container Cabin Multi-Purpose Living & Working Container Shelter

20ft Expandable Container Cabin Multi-Purpose Living & Working Container Shelter

1. Product Overview

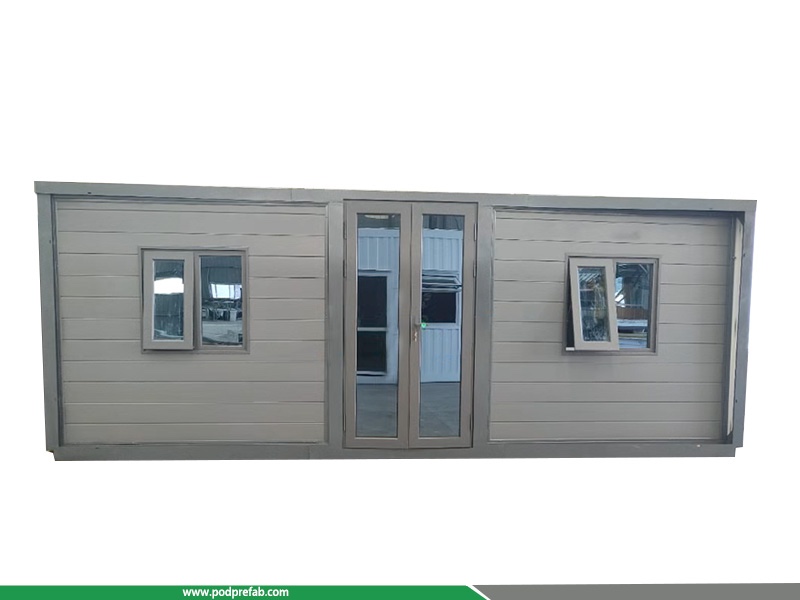

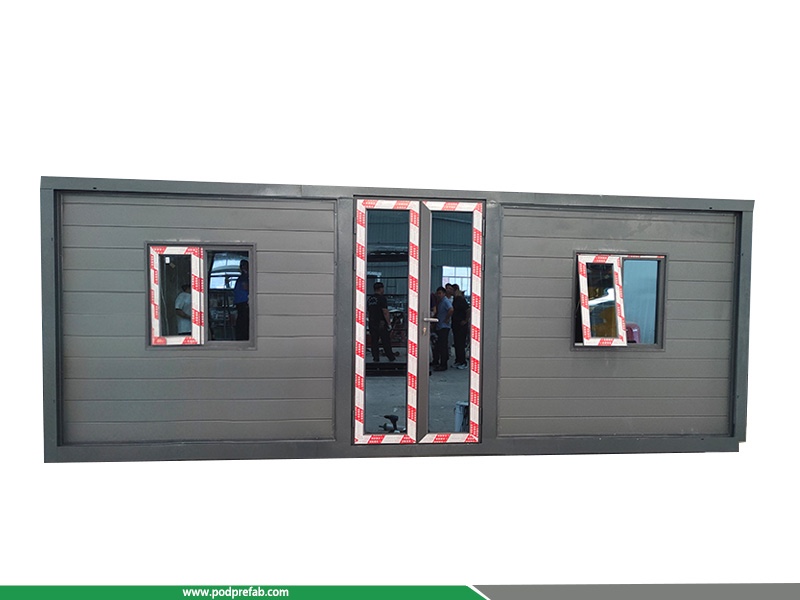

Our 20ft Expandable Container Cabin is a high-quality modular prefabricated building, perfectly serving as a heavy-duty 20ft Container Shelter for diversified commercial and residential scenarios. Designed with a foldable structure, it adopts standard 20ft container dimensions for effortless global transportation and fast on-site deployment. After bilateral expansion, it creates a spacious 34.77㎡ fully functional space with a complete 1-bedroom, 1-living room, 1-bathroom layout. Finished with premium weatherproof and insulated materials, this Container Cabin is pre-furnished and ready for immediate use, solving temporary and mobile housing & office demands perfectly.

2. Technical Specifications

Parameter	Details
Expanded Overall Size	5.9m (L) × 6.3m (W) × 2.48m (H)

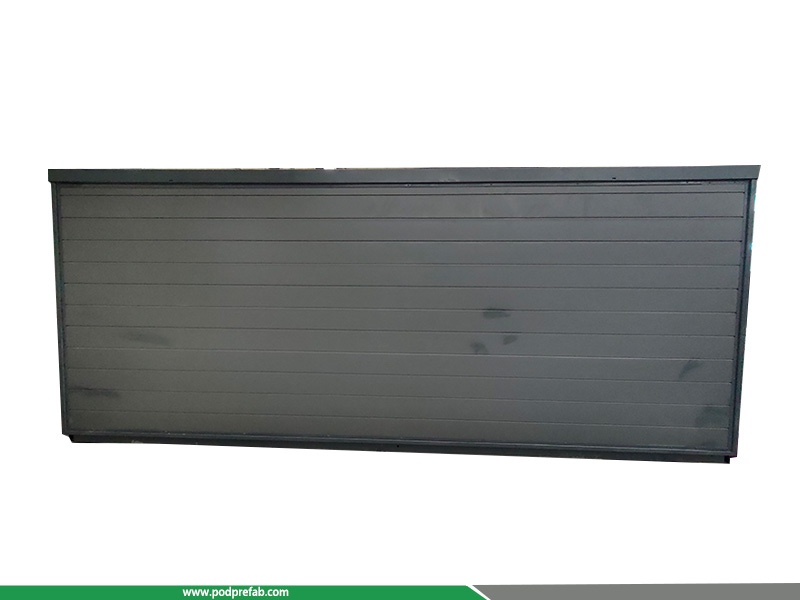

Folded Overall Size	5.9m (L) × 2.2m (W) × 2.48m (H)
Internal Clear Size	5.7m (L) × 6.1m (W) × 2.28m (H)
Unit Weight	Approx. 3.8 Tons
Total Floor Area	34.77 ㎡
Shipping Loading Capacity	2 units per 40ft HQ Container
Internal Layout	1 Bedroom, 1 Living Room, 1 Full Bathroom
Interior & Top Material	EPS Composite Panel (heat insulation, soundproof, fireproof)
Exterior Wall Material	Wood Grain Metal Carved Panel (weather-resistant, anti-corrosion, durable)
Flooring System	Main Area: Cement Fiberboard + Vinyl FlooringSide Wing Area: Cement Fiberboard + Bamboo PlywoodBathroom Area: Cement Fiberboard + Waterproof Vinyl Flooring
Bathroom Configuration	Grille Door, Integrated Washbasin, Mirror Cabinet, Toilet, Shower Set, Integrated Bath Heater, UV Moisture-Proof Panel
Door Accessories	Broken Bridge Aluminum Double Door, Broken Bridge Aluminum Single Door, Steel Security Door, Grille Door
Window Accessories	Aluminum Sliding Window & Broken Bridge Aluminum Outward Casement Window (with Lifting Screen)

3. Core Advantages

•  Flexible Foldable Structure, Low Logistics Cost

This 20ft Container Cabin features a foldable and expandable design. It adopts standard 20ft container size during transportation, supporting stackable shipping. 2 units can be loaded in one 40ft high cube container, greatly cutting down international freight costs. Pre-installed lifting rings on the top allow fast hoisting and one-step on-site assembly without complex construction.

• Premium Durable & Insulated Structure

Equipped with anti-corrosion metal carved exterior walls and high-density EPS composite panels, the 20ft Container Shelter delivers excellent heat insulation, sound insulation and weather resistance, adapting to various harsh outdoor climates. The zoned professional flooring system ensures wear resistance, waterproofing and strong load-bearing capacity for long-term service life.

• Fully Equipped & Ready-for-Use

The complete one-bedroom-one-living-room-one-bathroom layout is fully pre-installed with high-end doors, windows and complete bathroom facilities. No secondary decoration is required, realizing immediate occupancy after installation, which saves plenty of time and labor costs for users.

4. Wide Application Scenarios

As a multi-functional modular Container Cabin and 20ft Container Shelter, it is widely applicable for both commercial and residential fields:

• Construction Industry: On-site worker dormitories, temporary project offices, site meeting rooms, construction staff rest rooms
• Tourism & Hospitality: Scenic spot homestays, outdoor camping cabins, resort temporary accommodation, countryside boutique lodging
• Public & Emergency Use: Disaster relief shelters, emergency temporary residences, field rescue command rooms, public temporary service stations
• Remote & Special Work Areas: Mining area staff quarters, remote engineering project offices, oil field temporary accommodation, field working rest cabins
• Commercial Temporary Use: Temporary exhibition rooms, on-site sales offices, warehouse duty rooms, mobile service rooms

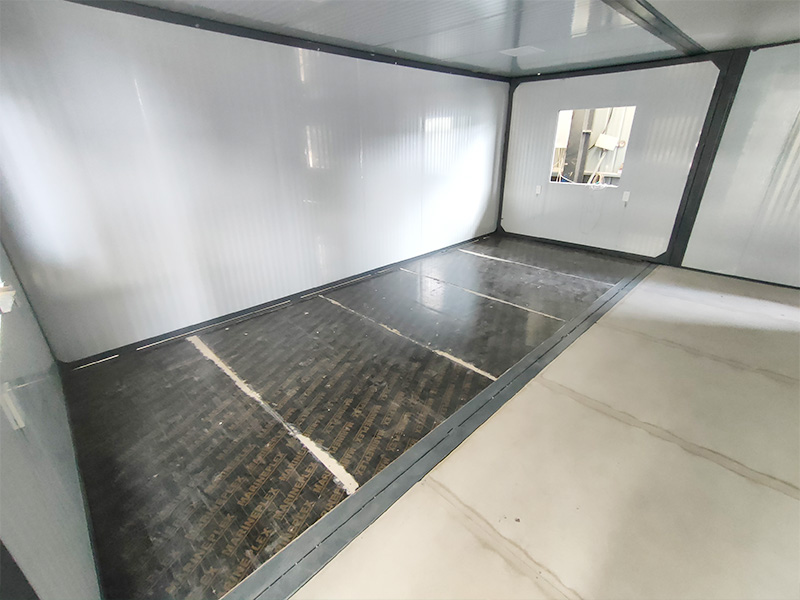

5. Interior photo：
