Container Hybrid Diesel ESS Power Station for Mining Site

Container Hybrid Diesel ESS Power Station for Mining Site

1. Product Overview

Mining sites have extreme power demands distinct from ordinary industrial scenarios: frequent start-stop of crushers, excavators and heavy mining equipment brings violent instantaneous load shocks; long-term off-grid operation leads to excessive diesel consumption; harsh dusty and high-temperature environments cause high failure rate of traditional power equipment. Conventional single diesel generators and ordinary hybrid power stations cannot fully adapt to mining-specific working conditions, resulting in low power efficiency, frequent shutdowns and high operation costs.

Targeted at mining industry pain points, our Mining Site Hybrid Diesel ESS Power Station (GPFCN‑360/250A400) adopts mine-grade hybrid power configuration, matching 360kW high-stability diesel base unit with 250kW large-capacity energy storage system to reach 610kW super peak output. Different from general hybrid power products, this professional Container Power Station is embedded with mining exclusive EMS scheduling logic, specially coping with random fluctuating loads of mining equipment.

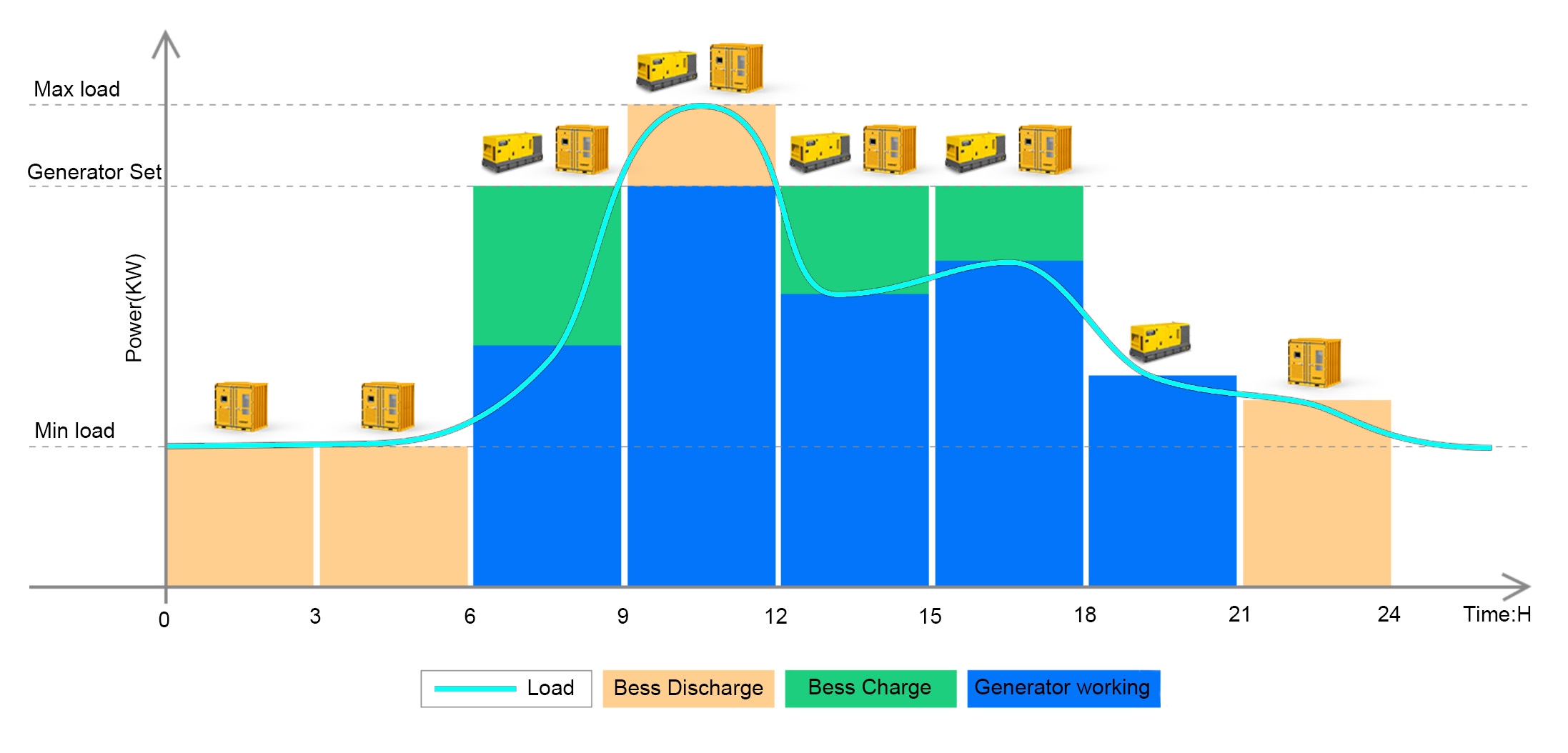

The ESS bears all instantaneous peak impacts and low-load standby power, enabling the 360kW diesel genset to avoid frequent start-stop and low-efficiency idling operation unique to mining scenarios. It achieves stable power output while cutting fuel consumption by more than 30%, greatly reducing mining operation expenditure. Equipped with IP54 mine-grade dustproof and waterproof protection and integrated container design, the equipment adapts to 24/7 uninterrupted operation in high-dust, high-temperature and humid remote mining areas, supporting rapid deployment without complex construction, which is the most cost-effective dedicated off-grid power solution for modern mining projects.

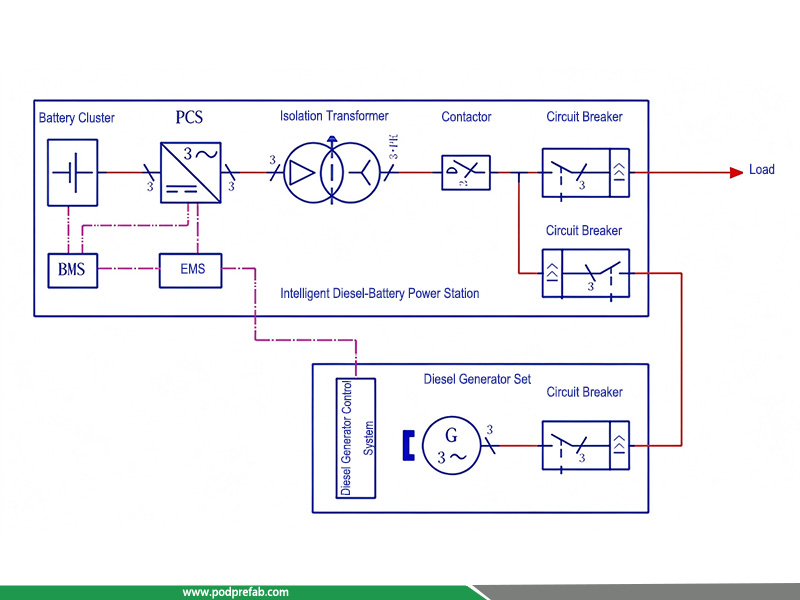

2. Main Structure & Core Configuration

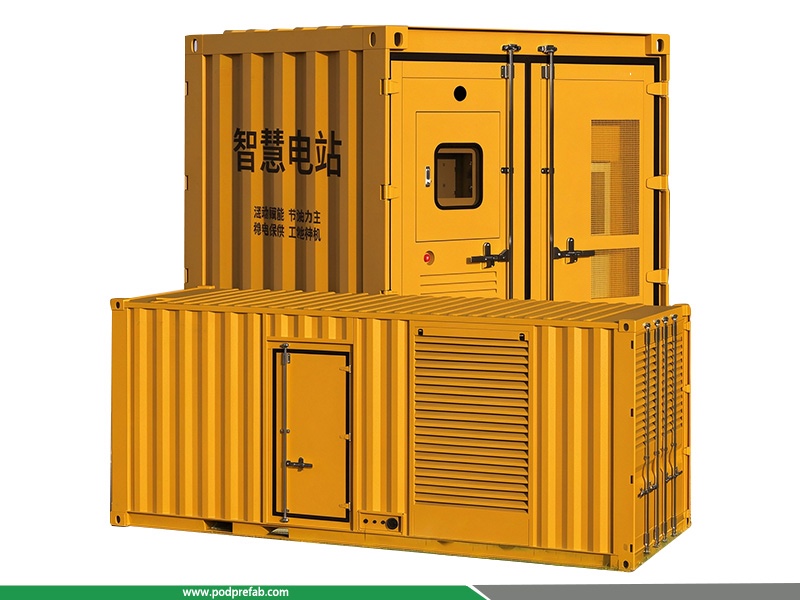

Breaking the structural design of ordinary container power stations, this Mining Site Hybrid Diesel ESS Power Station adopts an upper and lower isolated double-cabin structure optimized for mining harsh working conditions. It completely isolates the heat, vibration and dust generated by diesel operation from precision energy storage and control components, effectively reducing equipment failure rate caused by mining dust pollution and vibration interference, and greatly extending the overall service life in long-term mine operation. All core components are calibrated and upgraded for 610kW mining peak load demand, with stronger impact resistance and environmental adaptability than ordinary industrial power equipment.

Cabin Module	Components
Energy Storage Cabin(Upper Cabin)	High-Power PCS
	Mining Exclusive EMS System
	High-Voltage Protection Cabinet
	High-Rate Battery Pack
Diesel Generator Cabin(Lower Cabin)	Industrial Diesel Engine
	High-Efficiency Generator
	Enhanced Cooling System
	Intelligent Fuel Monitoring System
	Hybrid Parallel Controller

3. Technical Specifications

Item	Parameter
Model	GPFCN‑360/250A400
BESS Energy Capacity	250kW / 153.6kWh
Diesel Generator Rated Power	360kW
Total Hybrid Output Capacity	610kW / 153.6kWh
Rated Output Voltage	400Vac
Rated Output Frequency	50Hz
Output Connection	3‑Phase 4‑Wire
Protection Class	IP54

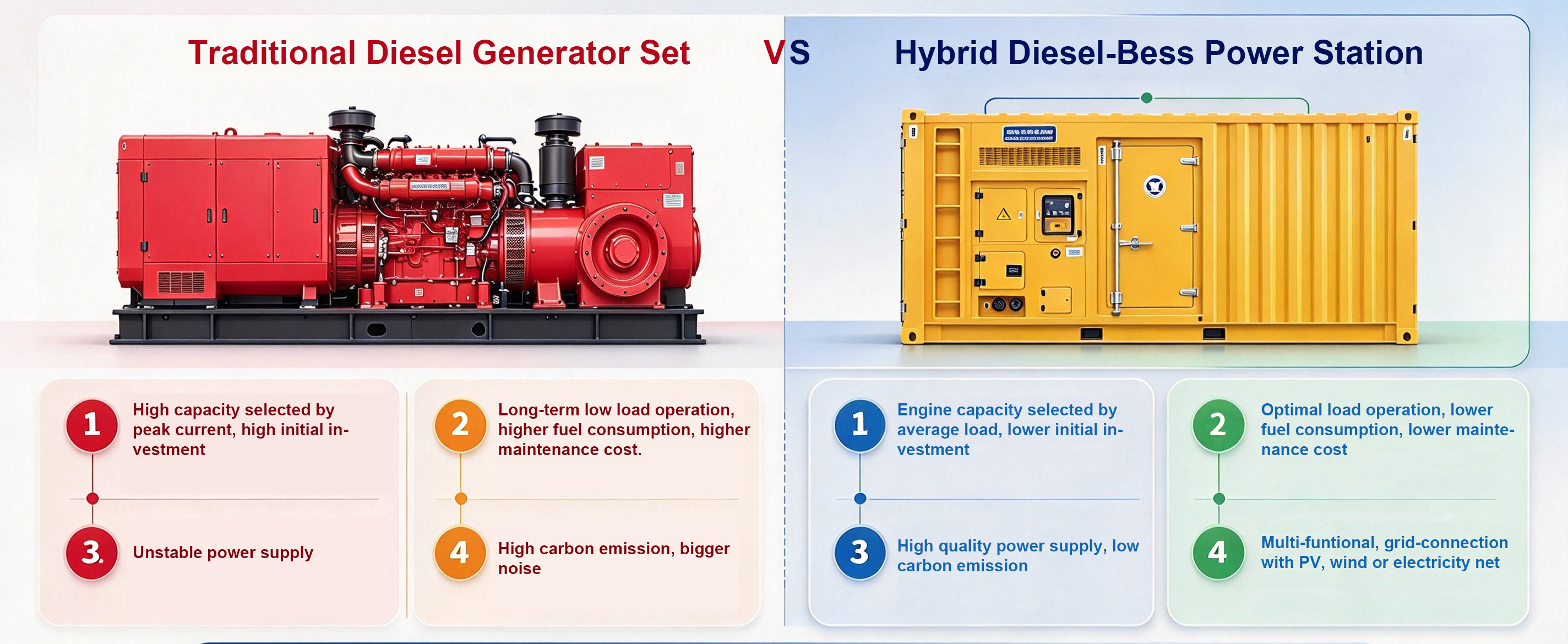

 4. Hybrid Diesel ESS Power Station VS Traditional Mining Diesel Generators

Comparison Item	Traditional Mining Diesel Generator	Mining Site Hybrid Diesel ESS Power Station
Mining Load Adaptability	Only fixed power output, no peak compensation capacity. Unable to resist sudden load impact of mining machinery, easy to cause voltage drop and equipment shutdown, unable to adapt to fluctuating mining loads.	610kW Mining Super Peak Resistance: 360kW stable base power + 250kW instant peak compensation. Targeting mining random fluctuating loads, it absorbs equipment startup impact in real time, avoids production shutdown, and perfectly matches full-load operation of heavy mining equipment groups.
Mining Fuel Cost	Long-term low-load standby and frequent start-stop in mining off-grid operation cause serious fuel waste. Coupled with high remote fuel transportation costs, the overall mining power consumption cost remains high.	30%+ Mining Fuel Saving: ESS undertakes all standby and peak loads, diesel unit only runs at optimal high-efficiency power section. It completely solves the low-efficiency operation problem of traditional mining diesel equipment, greatly reducing long-term fuel and logistics costs for mines.
Mine Environment Durability	Ordinary diesel units lack dust-proof and anti-vibration design, vulnerable to mining dust and vibration interference, with high failure rate and short service life, frequent maintenance required.	Mining Harsh Environment Customization: Isolated dust-proof double-cabin structure + enhanced mine-grade cooling system. It resists dust, high temperature and vibration interference, reduces failure rate in mining scenarios, and extends equipment service life significantly.
Mining Power Stability	Slow response, obvious voltage and frequency drift, serious harmonic interference. Unstable power quality easily causes wear and failure of precision mining equipment, affecting mining output.	Mining High-Precision Power Guarantee: Millisecond-level dynamic adjustment + active harmonic suppression. It maintains constant voltage and frequency output, avoids mining equipment loss and production pause caused by power fluctuation, and ensures continuous mining production.
Mining Operation & Maintenance	Frequent equipment faults require regular manual inspection and maintenance. Remote mining areas have high labor and spare parts costs, with heavy operation pressure.	Unattended Mining Intelligent Operation: Mining exclusive EMS system realizes automatic scheduling and fault early warning. Minimal manual intervention is required, greatly reducing on-site operation and maintenance pressure and labor costs of mining projects.

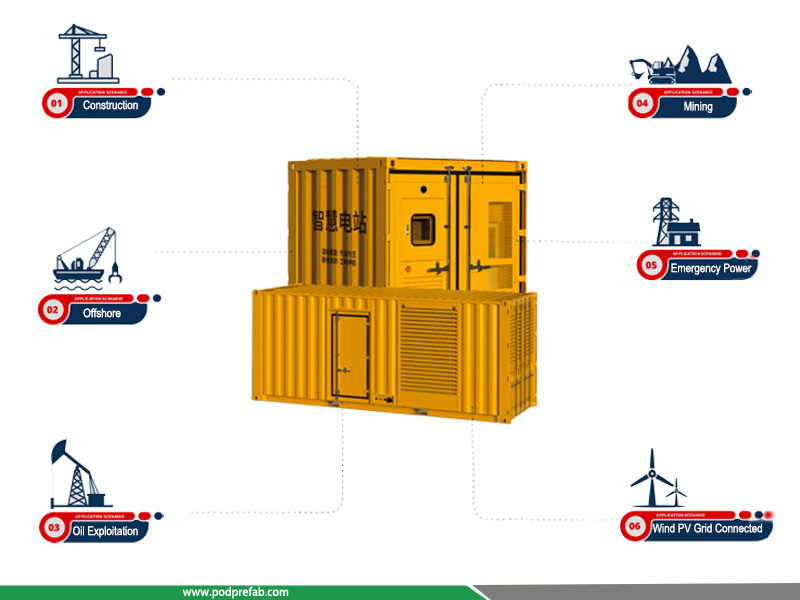

 5. Core Mining Application Scenarios

• Open-pit & Underground Mines: Specially designed for grid-free remote mines, coping with frequent load changes of excavators, crushers and conveyor equipment. 610kW high peak power ensures 24-hour uninterrupted and stable mining production.
• Mineral Processing & Sorting Bases: Provides high-stable power supply for precision mineral processing equipment, avoids ore sorting errors and equipment damage caused by power fluctuation, and improves mineral processing efficiency and yield.
• Remote Mining Construction Projects: Suitable for temporary power demand of mining area infrastructure construction, field exploration and mining road engineering, realizing fast deployment and stable power supply for construction teams.
• Coastal & Island Mining Zones: Adopts moisture-proof and salt-fog corrosion-resistant container structure, adapting to humid marine climate, and providing long-term stable self-sufficient power for coastal mining and island mining development.
• Mining New Energy Complementary Micro-grid: Cooperates with wind and solar power systems in mining areas to form new energy hybrid micro-grid, stabilizes new energy power fluctuation, reduces diesel power consumption, and realizes green and low-carbon mining operation.
• Mining Field Emergency Power: Standard container plug-and-play design enables rapid deployment, providing reliable high-power emergency power support for sudden power failure and field rescue in remote mining areas.

6. Product Core Differentiation & Strength Summary

• Different from conventional general-type hybrid container power stations on the market, our Mining Site Hybrid Diesel ESS Power Station achieves full-scene customization for mining industry pain points, forming exclusive core competitiveness in scenario adaptation, power performance and operating economy. Firstly, it features mining-specific load adaptation, with a 610kW super peak hybrid output and millisecond-level ESS response, perfectly coping with random impact loads of heavy mining equipment that ordinary power stations cannot withstand, effectively avoiding production shutdowns. Secondly, it delivers outstanding mining energy-saving benefits, optimizing diesel unit operating logic to avoid low-load idling and frequent start-stop, stably achieving 30%+ fuel savings and greatly cutting long-term operating costs for remote mines.
• In terms of harsh environment resistance, the unique upper and lower isolated double-cabin structure, matched with mine-grade dust-proof, heat-dissipation and anti-vibration upgrades, solves the high failure rate problem of ordinary power equipment in high-dust, high-temperature mining scenarios, extending equipment service life and reducing maintenance frequency. In addition, the built-in mining-exclusive EMS intelligent scheduling system realizes fully unattended intelligent operation with fault early warning, greatly lowering manual operation and maintenance pressure in remote mining areas. With plug-and-play container modular deployment and industrial-grade stable power output, it is a professional, economical and reliable dedicated off-grid power solution tailored for global mining projects.
