1. Brief introduction

Our premium foldable container dormitory is a factory prefabricated modular housing unit designed for fast deployment, convenient transportation and long-term stable use. Serving as a multi-functional portable container dormitory and flexible mobile container dormitory, it is widely applicable for construction staff dormitories, temporary worker accommodation, field project residences, emergency disaster relief housing, isolation rooms and on-site office living integration spaces.

• Featuring an innovative integral folding structure, the dormitory can be fully installed within only 5 minutes without complex construction tools or professional teams, greatly saving on-site labor and time costs. In folded status, the ultra-low height of 560mm realizes super space-saving transportation: a 20ft container can load 4 sets and a 40ft high container can hold 8 sets, which cuts logistics expenses significantly compared with ordinary container houses. Each unit weighs about 1.3 tons, with standardized unfolded dimensions of 5900mm×2450mm×2570mm, balancing lightweight transportation and spacious living space perfectly.
• Built for durability and comfort, the mobile container dormitory adopts high-strength galvanized steel pipe frames, anti-deformation and anti-rust for long-term outdoor service. The 50mm EPS fire-retardant composite wall panels deliver excellent thermal insulation, heat resistance and sound insulation performance. Adopting advanced no-crease integral molding technology, the whole house is tightly sealed with all internal joints fully processed, realizing complete windproof, waterproof and seepage-proof effects, adapting to various harsh outdoor weather conditions.
• All internal circuits, switches and sockets adopt concealed wiring design with neat and safe layout. Equipped with customized anti-theft steel doors and durable plastic-steel windows, the dormitory supports full configuration of independent bathrooms. The whole house is 100% prefabricated and decorated in the factory, no secondary decoration required after on-site deployment, enabling immediate occupancy and greatly improving project efficiency.
• As an eco-friendly, efficient and cost-effective modular housing solution, our portable container dormitory abandons traditional wet construction, produces no construction waste, and features reusable and recyclable structure. It can be freely combined and disassembled according to project demands, suitable for short-term emergency use and long-term fixed camp layout, providing reliable, comfortable and economical temporary housing solutions for global engineering, construction, mining, rescue and commercial temporary accommodation industries.

2. Technical parameters:

Unfolded Overall Dimension	5900mm × 2450mm × 2570mm
Folded Overall Dimension	5900mm × 2450mm × 560mm
Single Unit Weight	Approx. 1.3 Tons
Loading Capacity	4 sets / 20ft container; 8 sets / 40ft high cube container
Frame Material	High-strength hot-dip galvanized steel pipe, rust-proof and deformation-resistant
Wall Panel Material	50mm EPS fire-retardant composite board, thermal insulation, heat insulation and soundproof
Door & Window Configuration	Custom anti-theft steel door + durable plastic steel window
Installation Feature	5 minutes fast assembly, tool-free on-site installation
Sealing Performance	No crease design, fully sealed joints, windproof, waterproof and impermeable
Electric System	Pre-installed concealed wires, complete switches and sockets, safe and neat
Supporting Facility	Integrated pre-installed bathroom, ready for immediate occupancy
Application Scenarios	Construction staff dormitory, emergency temporary housing, field camp, project temporary residence, disaster relief accommodation

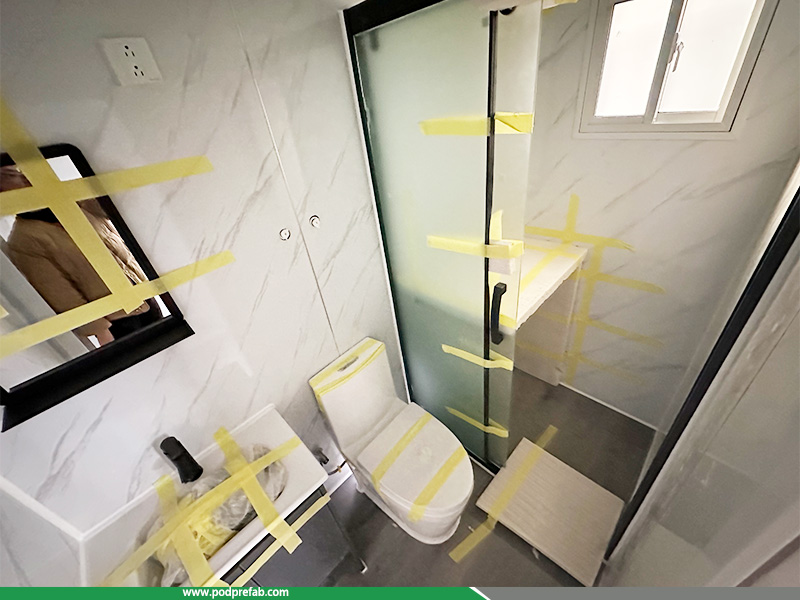

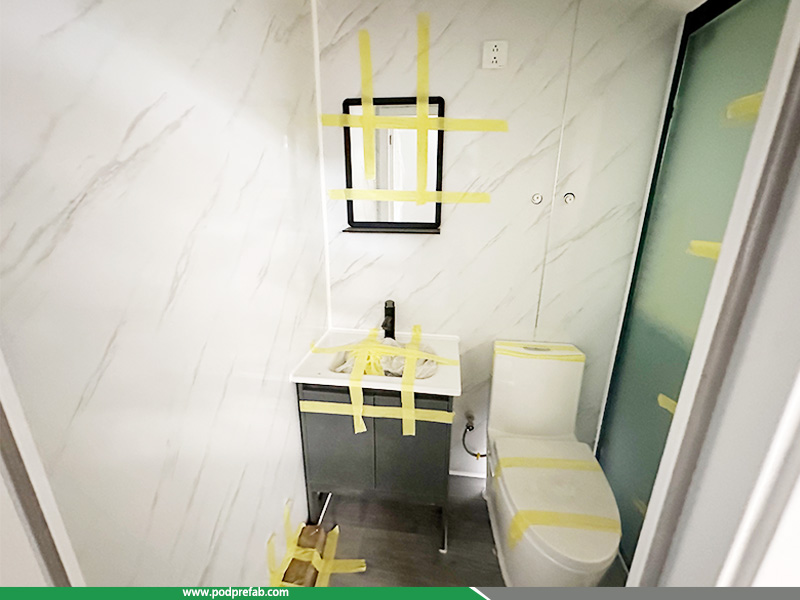

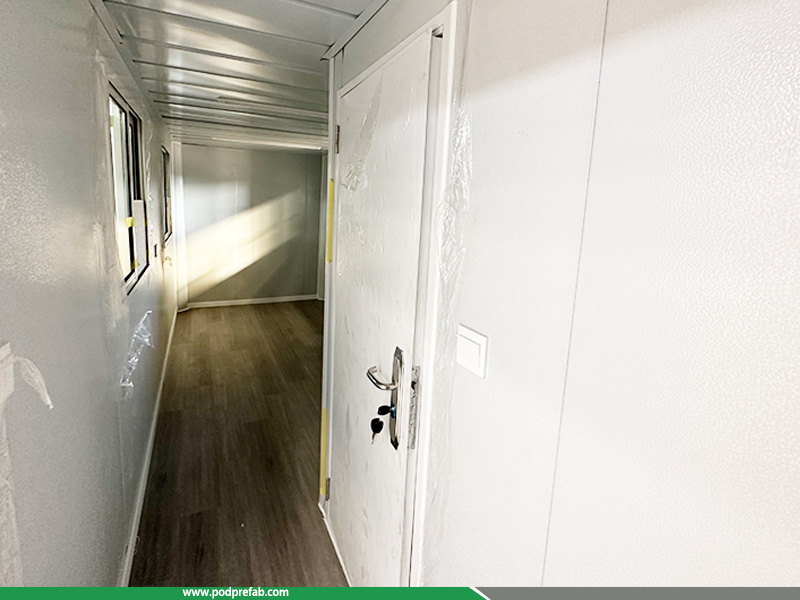

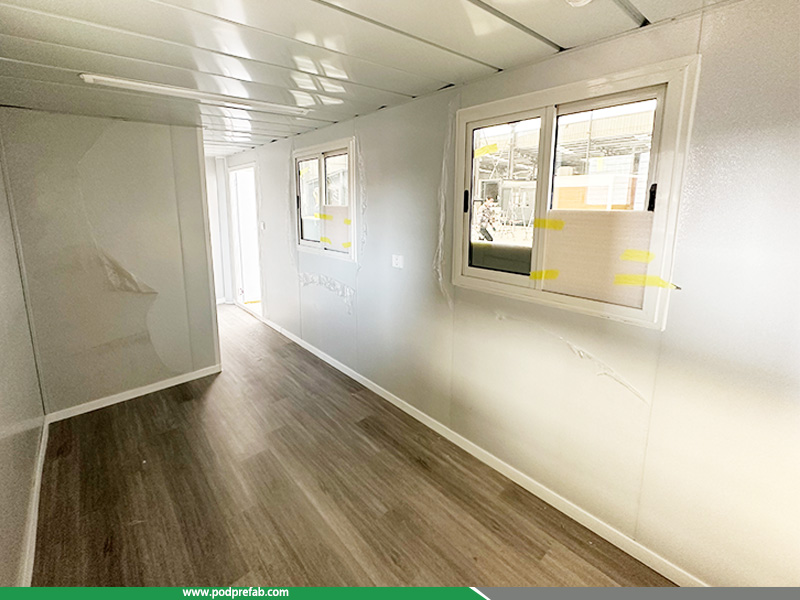

3. Interiors:

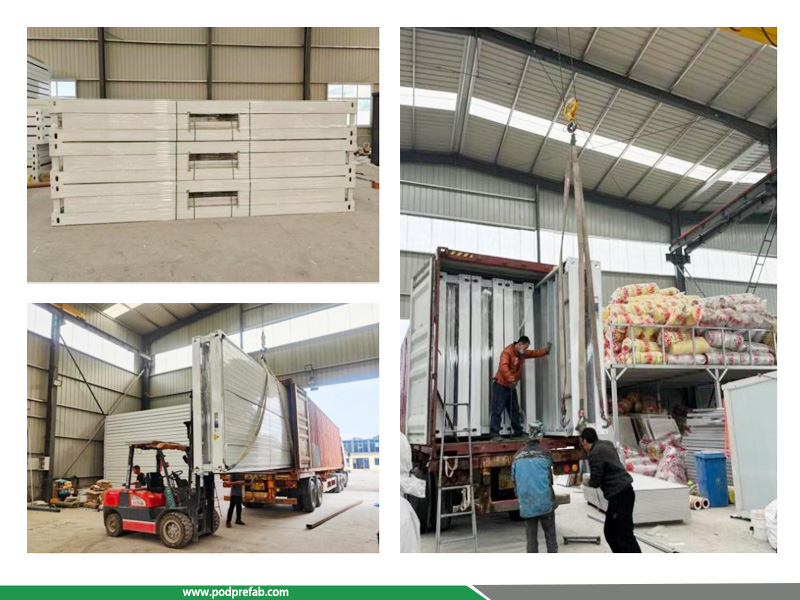

4. Loading photo:

5. Video:
