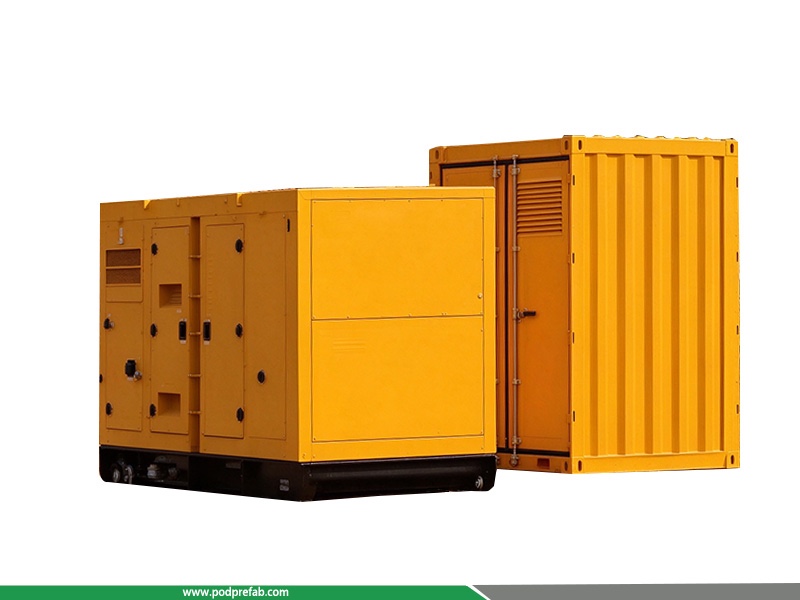

Container Integrated Diesel BESS Hybrid Power Station

Category： Containerized Hybrid Diesel BESS Power Station
Model:GPFCN‑50/130A400
Energy Storage Capacity:130kW /76.8kWh
Diesel Generator Rated Power:50kW
Total Hybrid Output Capacity:180kW /76.8kWh
INQUIRY EMAIL

Container Integrated Diesel BESS Hybrid Power Station

1.Product Description

Container Integrated Diesel BESS Hybrid Power Station is a container‑type distributed power supply solution developed based on rail transit hybrid drive technology. It integrates diesel generator set, battery energy storage system (BESS), PCS, EMS energy management system and micro‑grid control unit into one compact container unit.

Aiming at common drawbacks of traditional standalone diesel generators: low average load rate, excessive fuel burn, slow load response, high maintenance cost, heavy carbon and noise pollution. This containerized diesel‑BESS hybrid power station dynamically dispatches power flow via the EMS controller. The battery energy storage system undertakes load peaks and transient power demands, so the diesel engine always runs within its optimal efficiency zone or can even shut down for long periods.

This hybrid station supports seamless interconnection with utility grid, solar PV and wind power sources. It can work as off‑grid standalone power source, backup emergency power supply, or perform grid capacity expansion. It delivers energy‑saving, low‑carbon, high‑reliability power output for diversified remote and industrial sites.

2. Product Structure & Composition

The whole equipment adopts integrated split container design, divided into upper energy storage cabin and lower diesel generator cabin, with compact layout, complete functions and convenient installation and transportation.

The detailed structure composition is as follows:

Components	Core Function Description
PCS (Power Conversion System)	Realizes bidirectional AC/DC power conversion, completes battery charging and discharging control, and matches the power demand of load and diesel generator.
EMS Control System	The core control brain of the hybrid power station, responsible for real-time load data collection, power scheduling, micro-grid operation management and overall equipment intelligent monitoring.
High-voltage Cabinet	Provides high-voltage safety protection, power distribution and circuit monitoring for the energy storage system to ensure stable and safe operation of electrical loops.
Battery Pack	High-capacity energy storage carrier, undertakes peak load, instantaneous power compensation and load buffering, avoiding low-efficiency operation of diesel generator.
Diesel Engine	Adopts National III emission standard diesel engine, providing stable continuous power output with low emission and high reliability.
Generator	Matches with diesel engine to convert mechanical energy into electric energy, realizing continuous base load power supply.
Cooling System	Professional thermal management equipment, effectively controls the operating temperature of diesel generator set, and ensures long-term stable operation of the unit.
Intelligent Monitoring Fuel Tank	Real-time monitoring of fuel level, fuel consumption and operating status, realizing intelligent fuel management and convenient daily operation and maintenance.
Special Controller for Energy-storage Parallel Operation	Realizes smooth parallel connection and coordinated operation between diesel generator and BESS system, ensures seamless switching of power supply and stable grid operation.

3. Technical Specifications

Item	Parameter
Model	GPFCN‑50/130A400
Energy Storage Capacity	130kW /76.8kWh
Diesel Generator Rated Power	50kW
Total Hybrid Output Capacity	180kW /76.8kWh
Rated Output Voltage	400Vac
Rated Output Frequency	50Hz
Output Connection	3‑Phase 4‑Wire
Protection Class	IP54

4. Application Scenarios

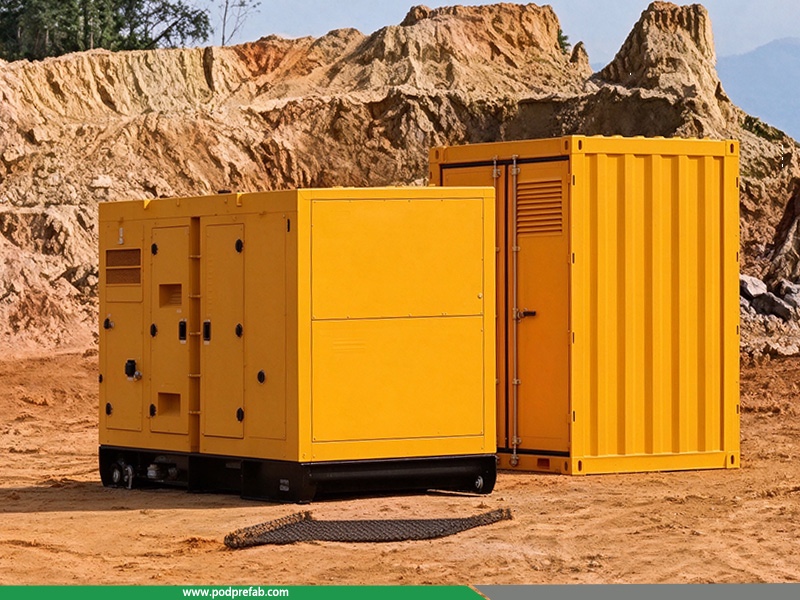

Mining Sites: Provide stable hybrid power supply for remote open-pit and underground mines, effectively reducing fuel transportation and operation costs.
Remote Off-grid Areas: Ideal power solution for islands, mountainous areas and rural regions without access to public utility grid.
Large Construction Sites: Reliable temporary power support for infrastructure construction, railway, highway and large engineering projects.
Emergency Backup Power: Serve as emergency standby power for industrial parks, commercial facilities and key equipment to avoid power outage losses.
Micro-grid Projects: Perfectly compatible with solar PV and wind power systems to build low-carbon, intelligent local distributed micro-grids.
Grid Capacity Expansion: Effectively supplement power capacity for areas with insufficient public grid power supply and tight power consumption.
